Gylon® 3504

Price range: $6.10 through $1,438.87

SKU: gylon3504 Category:

Description

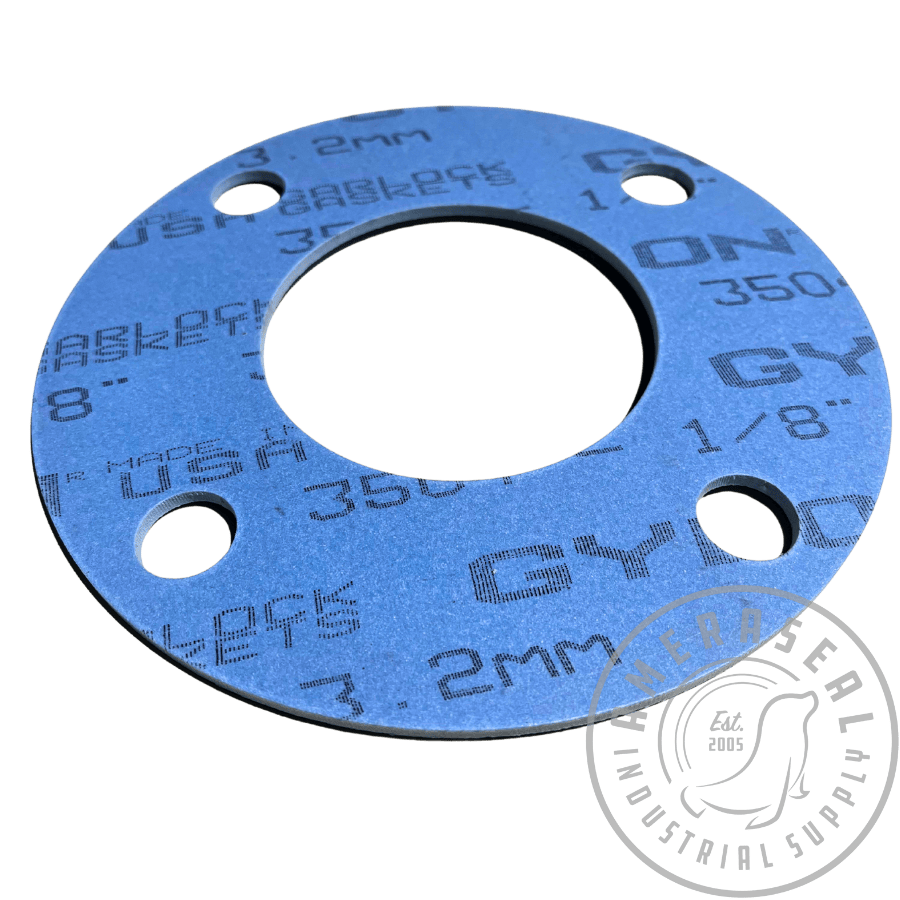

The GYLON® Style 3504 gasket is made of PTFE with aluminosilicate microspheres. It is designed for use in many acids, some caustics, hydrocarbons, refrigerants, and more.

3504 features a tight seal, Improved performance over conventional PTFE, Reduced product loss and emissions, Reduced creep relaxation, Unique manufacturing process minimizes cold flow problems typical of skived and expanded PTFE sheets, Excellent bolt torque retention, Withstands a wide range of chemicals for extended service life in a wide variety of applications, Will not burn, Will not support bacterial growth

Media uses: Piping Systems, Pressure Vessels, Pumps, Scrubber Systems, Storage Tanks, acids and some caustics, Hydrocarbons, Solvents, Water, Refrigerants, Cryogenics, Hydrogen peroxide

Additional information

Weight N/A
Dimensions N/A
Size (Nominal Pipe Size)

, , , , , , , , , , , , , , , , , ,

Pressure Class

, , ,

Material Thickness

1/16", 1/8"

Style

Full Face, Ring
