TEADIT® 1100

Price range: $0.34 through $301.76

SKU: teadit1100 Category:

Description

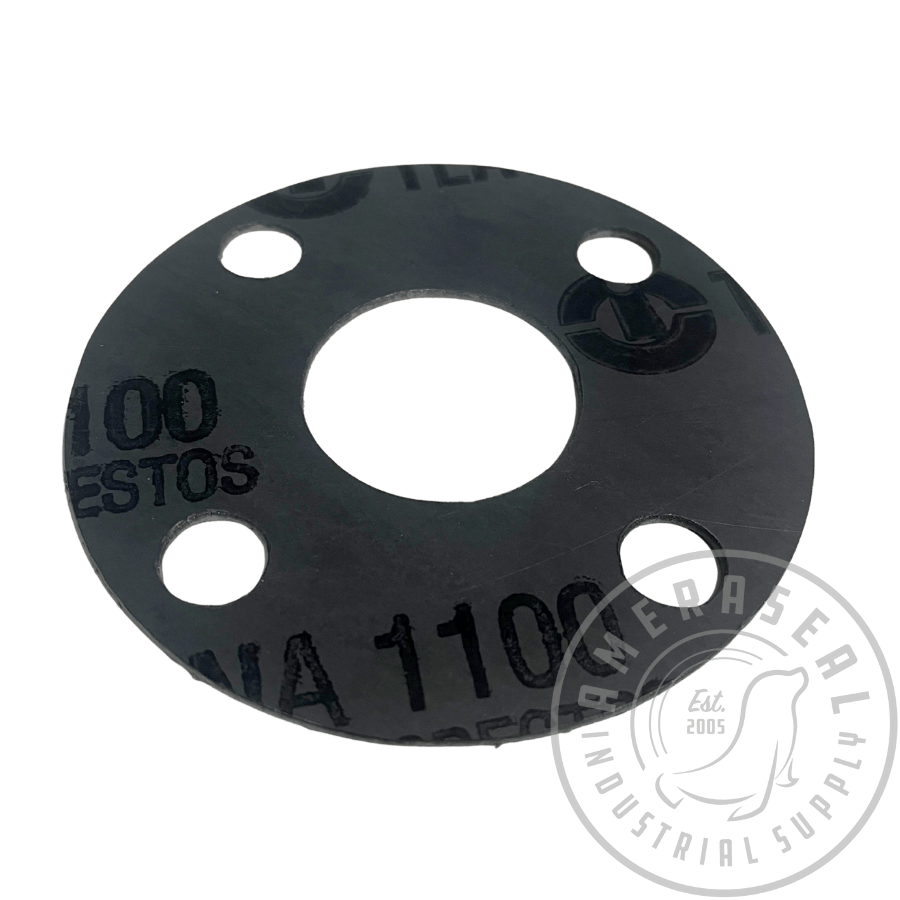

Style TEADIT® 1100 is a compressed fiber sheet gasket material produced from carbon fibers and graphite, bonded with nitrile rubber (NBR). It is manufactured through the hot calendar process under rigorous quality control standards that are registered under ISO- 9001 certification.

TEADIT® 1100 is a premium grade, multi-service gasket sheet, designed to handle the extremes of pressure and temperature, and it cuts very easily and cleanly. The versatility of this sheet enables a plant to standardize on one sheet for a multitude of applications and avoid the confusion of having to choose from several different sheets. TEADIT® 1100 is suitable for service handling the following general media categories:

– Exhaust – Mild organic acids – Air – Diluted alkalis – Water – Brine – Saturated steam – Industrial gases – Animal oils – Synthetic oils – Vegetable oils – Petroleum and Derivatives – Aliphatic solvents – Neutral solutions – Refrigerants

Additional information

Weight N/A
Dimensions N/A
Size (Nominal Pipe Size)

, , , , , , , , , , , , , , , , , ,

Pressure Class

, , ,

Material Thickness

1/64", 1/32", 1/16", 1/8"

Style

Full Face, Ring
